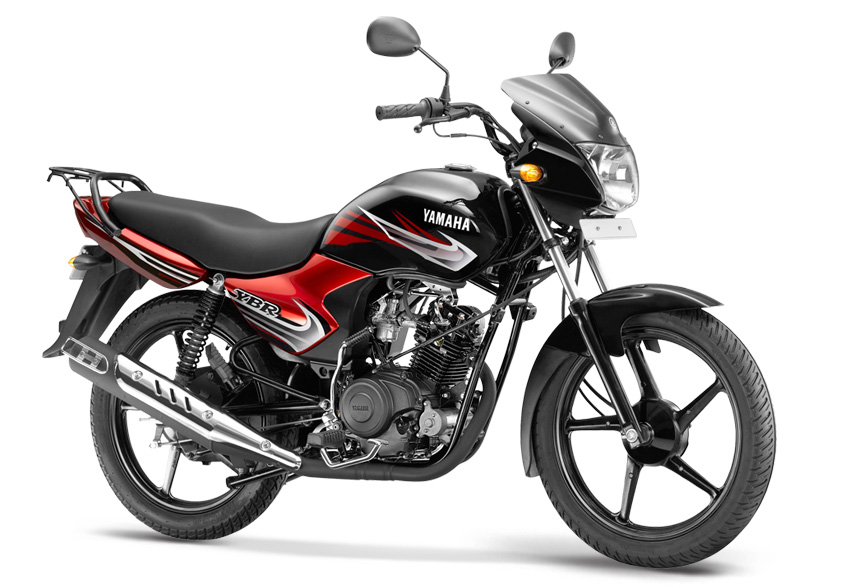

Yamaha YBR 110

46,465 Onwords | Ex-Showroom Chennai


Overview


  • Milege:70 Kmpl
  • Engine displacement:106 cc
  • Power:7.6 PS / 7,500 rpm
  • Torque:7.9 N.m / 6,000 rpm
  • Gear box:Constant Mesh 4-Speed
  • Ground clearence:185 mm
  • Fuel Tank Capacity:13 Liter

Variants

Variants
 Variants  Showroom price  On road price
YBR 110 46465 52273

Overview

This Commuter bike is available totally in 2 colors.

In this model, the 1-cylinder and 106 cc capacity engine is fitted. This petrol engine delivers the power of 7.6 bhp (7500rpm) and torque of 7.9 NM (6000rpm). As per ARAI certification, this model gives mileage of 70 Kmpl.

This bike has capable of crossing the speed of 60Kmph within 9 to 10 seconds. And this bike reaches the top speed of 90 to 95 Kmph approximately

Performance

Performance
Engine Air cooled, 4-stroke, SOHC
Engine displacement 106 cc
Maximum Power 7.6 PS / 7,500 rpm
Maximum Torque 7.9 N.m / 6,000 rpm
Top speed 90-95 Kmph
Acceleration (0-60Kmph) 9-10 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition CDI (capacitor discharge ignition)
Compression Ratio 9.00:1
No of Cylinder 1
Bore & Stroke 49.0mm x 56.0mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box Constant Mesh 4-Speed
Clutch Wet Multiple-disc
Starting system Electric& Kick

Brake

Brake
Front Brake Drum
Rear Brake Drum
ABS no

Suspension

Suspension
Front Suspension Telescopic
Rear Suspension Swingarm

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75-18
Rear Tyre 3.00-18 6PR
Wheel Type Alloy
Tubeless Tyres yes

Battery

Battery
Battery Type MF
Capacity 5Ah
Voltage 12V

Instrument Console

Instrument Console
Speedometer Analog
Odometer Analog
Engine RPM meter -
Fuel Gauge Analog

Lighting

Lighting
Head Light 12 V, 35/35 W
Tail Light -

Dimension

Dimension
Overall Length 2,040 mm
Overall Width 715 mm
Overall Height 1,095 mm
Ground Clearance 185 mm
Seat Height 780 mm
Wheelbase 1,285 mm
Kerb/Wet Weight 126 Kg
Fuel Tank Capacity 13 Liter
Reserve Fuel Capacity 1.2 Liter
