Yamaha Cygnus Ray ZR

52,000 Onwords | Ex-Showroom Chennai


Overview


  • Milege:66 Kmpl
  • Engine displacement:113 CC
  • Power:5.3kw (7.2PS)/7500rpm
  • Torque:8.1Nm (0.8kgf-m)/5000rpm
  • Gear box:CVT
  • Ground clearence:130 mm
  • Fuel Tank Capacity:5.2 L

Variants

Variants
 Variants  Showroom price  On road price
Cygnus Ray ZR 52000 58500
Cygnus Ray ZR Disc 54500 61350

Overview

The same 1 cylinder 113cc capacity engine which is used in other Yamaha scooter was fitted in this model. This engine delivers power of  7.1 bhp (7500rpm) and torque of 8.1 NM (5000rpm). This model will give mileage of 66 kmpl as certified by ARAI. This model cross 60 Kmph speed with in 9 to 10 seconds and reach maximum speed of 85 to 90 Kmph.

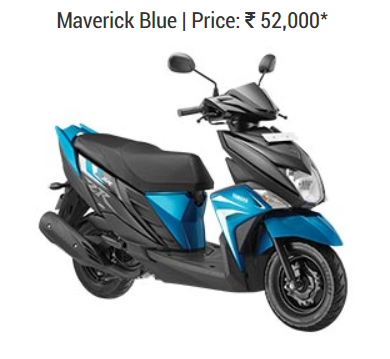

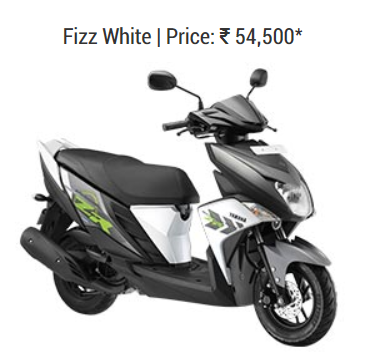

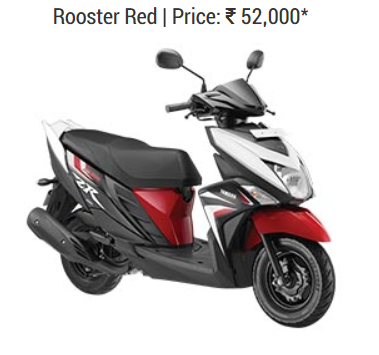

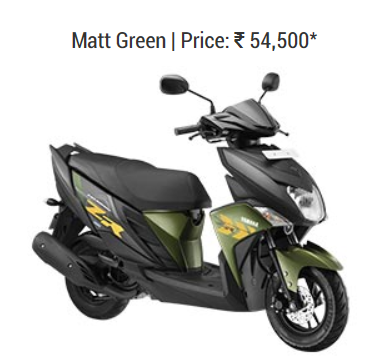

This model designed based on the Ray platform. The scooter also gets the best-in-class under seat storage space of 21-litre. This model available in 4 colors such as Matt Green, Fizz White, Maverick Blue and Rooster Red.

Performance

Performance
Engine Air-cooled, 4-stroke, SOHC, 2-valve
Engine displacement 113 CC
Maximum Power 5.3kw (7.2PS)/7500rpm
Maximum Torque 8.1Nm (0.8kgf-m)/5000rpm
Top speed 80 -85 Kmph
Acceleration (0-60Kmph) 9 -10 seconds
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition CDI (Capacitor Discharge Ignition)
Compression Ratio -
No of Cylinder 1
Bore & Stroke -
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box CVT
Clutch Automatic
Starting system Electric start & Kick start

Brake

Brake
Front Brake disc brake /drum brake
Rear Brake drum brake
ABS No

Suspension

Suspension
Front Suspension Telescopic Fork
Rear Suspension Unit Swing

Wheels & Tyres

Wheels & Tyres
Front Tyre 90/100-10 53J Tubeless
Rear Tyre 90/100-10 53J Tubeless
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type Mf
Capacity 5Ah
Voltage 12V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Analogue
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light Halogen Bulb, 12V,35/35Wx1
Tail Light 12V,21/5W x 1

Dimension

Dimension
Overall Length 1,820 mm
Overall Width (Disk/Drum) 700 mm / 690 mm
Overall Height 1,115 mm
Ground Clearance 130 mm
Seat Height 775 mm
Wheelbase 1,270 mm
Kerb/Wet Weight (Disk/Drum) 103kg / 105kg
Fuel Tank Capacity 5.2 L
Reserve Fuel Capacity -
