TVS XL100

29,539 Onwords | Ex-Showroom Chennai


Overview


  • Milege:67 Kmpl
  • Engine displacement:99.7 cc
  • Power:3.10 kW(4.2 PS) @ 6000 rpm
  • Torque:6.3 Nm @ 3500 rpm
  • Gear box:CVT
  • Ground clearence:155 mm
  • Fuel Tank Capacity:4 Ltr

Variants

Variants
 Variants  Showroom price  On road price
XL100 29539 31339

Overview

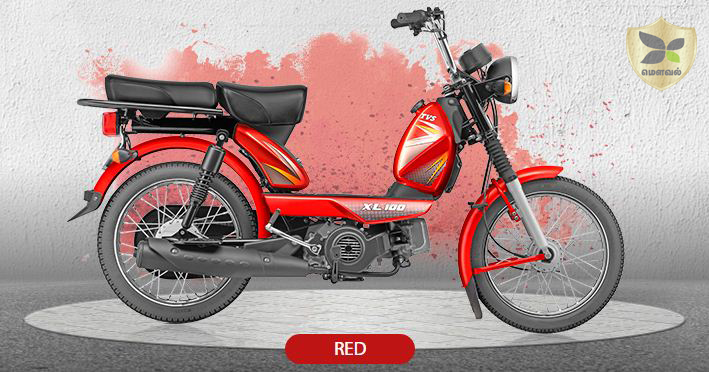

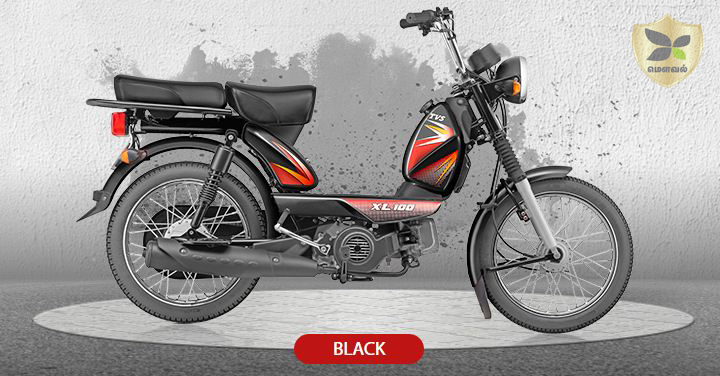

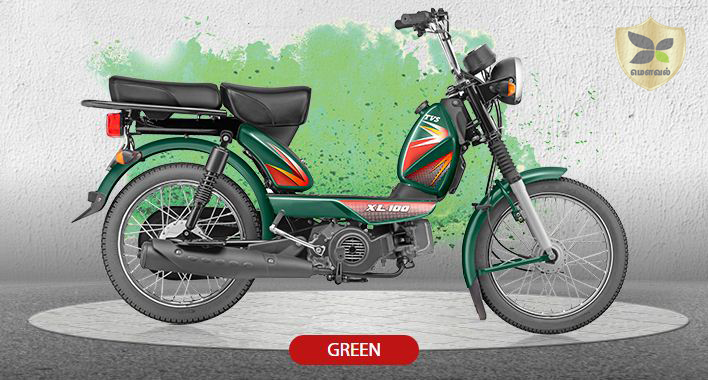

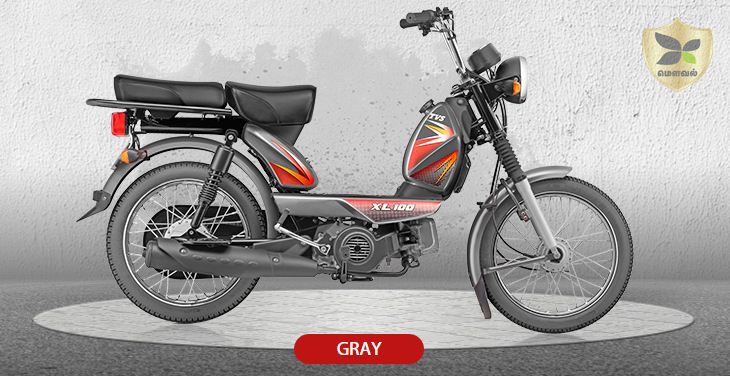

This model available in 5 colors  including blue, red, green, grey and black. TVS XL is most popular model in India and also available in market long time. And TVS released a high power model  to increase sales in rural areas.

In this model, the 1-cylinder and 99.7 cc capacity engine is fitted. This petrol engine delivers the power of 4.2 bhp and torque of 6 Nm. As per ARAI certification, this model gives mileage of 67 Kmpl.

Moreover, this model is capable of carrying the pay load up to 130 kg.

Performance

Performance
Engine 4 Stroke Single Cylinder
Engine displacement 99.7 cc
Maximum Power 3.10 kW(4.2 PS) @ 6000 rpm
Maximum Torque 6.3 Nm @ 3500 rpm
Top speed 65-70Kmph
Acceleration (0-60Kmph) 9-10 s
Fuel Delivery System Carburetor
Cooling Air
Ignition Fly wheel magneto 12V, 90W @ 5000 rpm
Compression Ratio -
No of Cylinder 1
Bore & Stroke 51.0 mm X 48.8 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box CVT
Clutch Centrifugal Wet Type
Starting system Kick Start

Brake

Brake
Front Brake 80 mm Drum Brake
Rear Brake 110 mm Drum Brake
ABS No

Suspension

Suspension
Front Suspension Telescopic spring type hydraulic
Rear Suspension Swing arm with hydraulic shocks

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.5 x 16
Rear Tyre 2.5 x 16
Wheel Type Spoke
Tubeless Tyres No

Battery

Battery
Battery Type MF
Capacity 5Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analoge
Odometer Analoge
Engine RPM meter -
Fuel Gauge Analoge

Lighting

Lighting
Head Light 12V, 35/35W
Tail Light 12V,5W

Dimension

Dimension
Overall Length 2020 mm
Overall Width 750 mm
Overall Height 1110 mm
Ground Clearance 155 mm
Seat Height 770 mm
Wheelbase 1215 mm
Kerb/Wet Weight 75 Kg
Fuel Tank Capacity 4 Ltr
Reserve Fuel Capacity 1.3 Ltr
