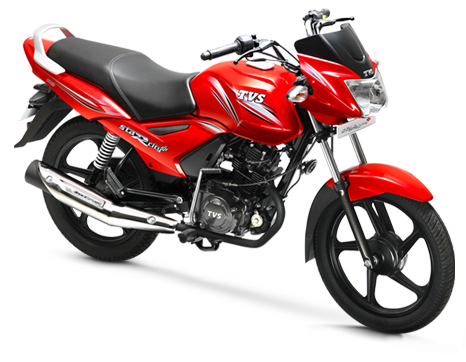

TVS Star City Plus

44,547 Onwords | Ex-Showroom Chennai


Overview


  • Milege:86 Kmpl
  • Engine displacement:109.7cc
  • Power:8.4 PS @ 7000 rpm
  • Torque:8.7 NM @ 5000 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:172 mm
  • Fuel Tank Capacity:10 Liter

Variants

Variants
 Variants  Showroom price  On road price
Kick start 44547 50115
Electric Start 47155 53049

Overview

This Commuter Bike is available in totally 3 colors such as Red, Blue and Black.

In this model, the 1-cylinder and 109.7 cc capacity engine is fitted. This petrol engine delivers the power of 8.4 bhp (7000 rpm) and torque of 8.7 Nm (5000rpm). As per ARAI certification, this model gives mileage of 86 Kmpl.

This bike has capable of crossing the speed of 60Kmph within 9 to 10 seconds. And this scooter reaches the top speed of 85 to 90 Kmph.

Performance

Performance
Engine 4-stroke single cylinder
Engine displacement 109.7cc
Maximum Power 8.4 PS @ 7000 rpm
Maximum Torque 8.7 NM @ 5000 rpm
Top speed 85-90Kmph
Acceleration (0-60Kmph) 9-10 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition C.D.I
Compression Ratio 9.2:1
No of Cylinder 1
Bore & Stroke 53.5 mm x 48.8 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Kick Start & Electri start

Brake

Brake
Front Brake Internally expanding, 130 mm dia
Rear Brake Internally expanding, 110 mm dia
ABS No

Suspension

Suspension
Front Suspension Telescopic oil damped front suspension
Rear Suspension 5 step adjustable hydraulic shock absorber

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 17
Rear Tyre 3.00 x 17
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 2.5 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Digital
Odometer Digital
Engine RPM meter -
Fuel Gauge Digital

Lighting

Lighting
Head Light -
Tail Light -

Dimension

Dimension
Overall Length 1980 mm
Overall Width 750 mm
Overall Height 1080 mm
Ground Clearance 172 mm
Seat Height -
Wheelbase 1260 mm
Kerb/Wet Weight 109Kg
Fuel Tank Capacity 10 Liter
Reserve Fuel Capacity 2 Liter
