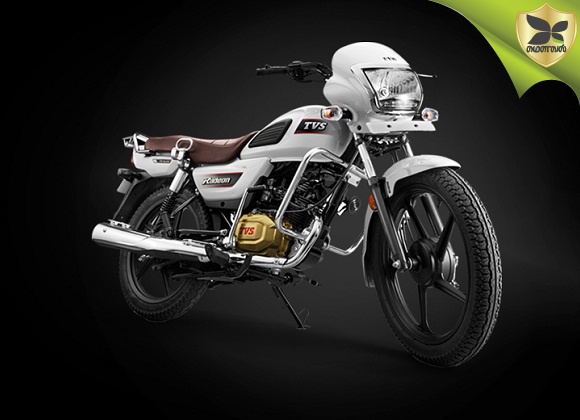

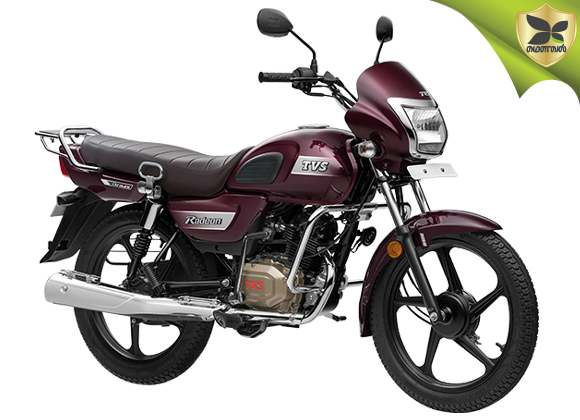

TVS Radeon

48,400 Onwords | Ex-Showroom Chennai


Overview


  • Milege:69.3kmpl
  • Engine displacement:109.7 cc
  • Power:6.18 kW (8.4 PS) @ 7000 rpm
  • Torque:8.7 Nm @ 5000 rpm
  • Gear box:4 speed constant mesh
  • Ground clearence:180 mm
  • Fuel Tank Capacity:10 liters

Variants

Variants
 Variants  Showroom price  On road price
Radeon 48400 54450

Overview

Mechanically, this model have 109.7cc Dura-Life single cylinder air colled engine. This engine delivers the maximum power of 8.4PS@7000 rpm and maximun torque of 8.7Nm @5000rpm. TVS claims a mileage of 69.3kmpl and the fuel tank can hold 10 litre. Braking duties are carried by drum brake for both frond and back. The all new Radeon available with four color options - METAL BLACK, PEARL WHITE, GOLDEN BEIGE and ROYAL PURPLE.

The Radeon also have 18-inch alloy wheels, Synchronised Braking Technology, 5-step adjustable twin hydraulic shock absorbers, steel tubular chassis, USB port, side stand indicator with beeper and etc,.

Performance

Performance
Engine 4 Stroke Duralife
Engine displacement 109.7 cc
Maximum Power 6.18 kW (8.4 PS) @ 7000 rpm
Maximum Torque 8.7 Nm @ 5000 rpm
Top speed -
Acceleration (0-60Kmph) -
Fuel Delivery System -
Cooling Air cooling
Ignition -
Compression Ratio 9.65 : 1
No of Cylinder 1
Bore & Stroke 53.5 mm x 48.8 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 speed constant mesh
Clutch Wet - multi plate type
Starting system Self & Kick starting

Brake

Brake
Front Brake 130 mm Drum
Rear Brake 110 mm Drum
ABS No

Suspension

Suspension
Front Suspension Telescopic oil damped front suspension
Rear Suspension 5 step adjustable hydraulic shock absorber

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 18 (tubeless)
Rear Tyre 3.00 x 18 (tubeless)
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type Maintenance Free
Capacity -
Voltage -

Instrument Console

Instrument Console
Speedometer Analouge
Odometer Analouge
Engine RPM meter -
Fuel Gauge Analouge

Lighting

Lighting
Head Light -
Tail Light -

Dimension

Dimension
Overall Length 2006 mm
Overall Width 705 mm
Overall Height 1070 mm
Ground Clearance 180 mm
Seat Height -
Wheelbase 1265 mm
Kerb/Wet Weight -
Fuel Tank Capacity 10 liters
Reserve Fuel Capacity 1.5 liters
