TVS Phoenix 125

55,125 Onwords | Ex-Showroom Chennai


Overview


  • Milege:67 Kmpl
  • Engine displacement:124.53cc
  • Power:8.1 KW(11PS) @8000 rpm
  • Torque:10.8 Nm @ 5500 rpm
  • Gear box:4
  • Ground clearence:165 mm
  • Fuel Tank Capacity:12 Liter

Variants

Variants
 Variants  Showroom price  On road price
TVS Phoenix Drum 55125 62016
TVS Phoenix Disc 57225 64378

Overview

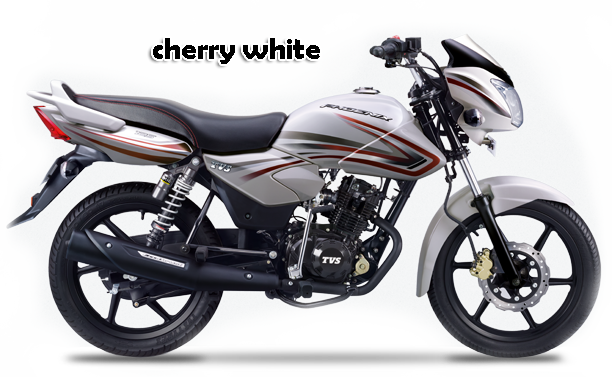

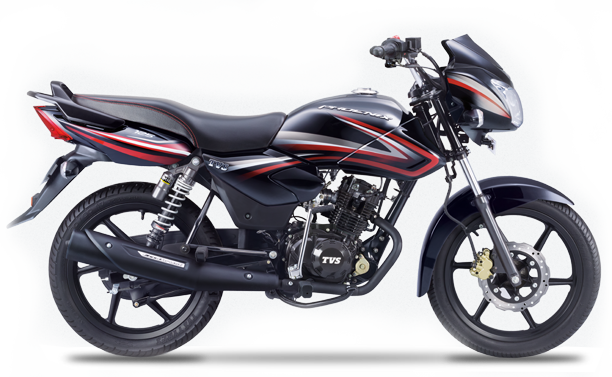

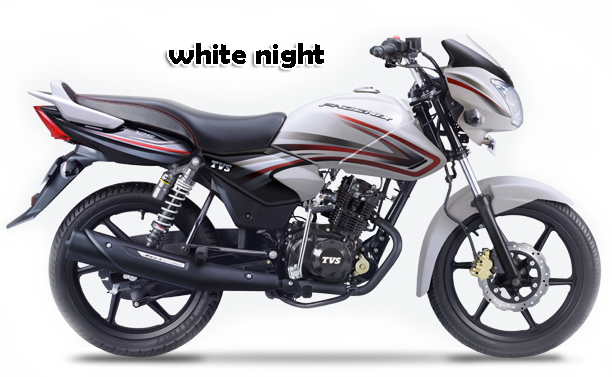

This Commuter Bike is available in totally6 colors.

In this model, the 1-cylinder and 124.53 cc capacity engine is fitted. This petrol engine delivers the power of  11 bhp (8000 rpm)and torque of 10.8 Nm (5500rpm). As per ARAI certification, this model gives mileage of 67 Kmpl.

This bike has capable of crossing the speed of 60Kmph within 7 to 8 seconds. And this scooter reaches the top speed of 95 to 100 Kmph.

Performance

Performance
Engine 4 Stroke
Engine displacement 124.53cc
Maximum Power 8.1 KW(11PS) @8000 rpm
Maximum Torque 10.8 Nm @ 5500 rpm
Top speed 95-100 Kmph
Acceleration (0-60Kmph) 7-8 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition DC - Digital CDI
Compression Ratio 9.4 : 1.0
No of Cylinder 1
Bore & Stroke 57 mm x 49 mm
Spark Plugs Per Cylinder 2
Valves Per Cylinder 1
Gear box 4
Clutch Multiplate Wet
Starting system Kick Start & Electri start

Brake

Brake
Front Brake INTERNALLY EXPANDING, 130mm DIA DRUM / DIA 240mm DISC
Rear Brake INTERNALLY EXPANDING, 130mm DIA DRUM
ABS No

Suspension

Suspension
Front Suspension TELESCOPIC OIL-DAMPED
Rear Suspension TWIN, 5 STEP ADUSTABLE MONOTUBE INVERTED GAS(MIG) FILLED CANISTER SHOCKS WITH SERIES SPRING

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 X 17
Rear Tyre 90/90 X 17
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 5Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Digital
Odometer Digital
Engine RPM meter Digital
Fuel Gauge Digital

Lighting

Lighting
Head Light 12V,35/35W X 1
Tail Light 12V, 5/21W X 1

Dimension

Dimension
Overall Length 1985 mm
Overall Width 740 mm
Overall Height 1065 mm
Ground Clearance 165 mm
Seat Height 780 mm
Wheelbase 1265 mm
Kerb/Wet Weight 114 Kg / 116 Kg
Fuel Tank Capacity 12 Liter
Reserve Fuel Capacity 2 Liter
