TVS Max 4R
TVS Max 4R
TVS Max 4R

TVS Max 4R

41,024 Onwords | Ex-Showroom Chennai

Overview

  • Milege:70 kmpl
  • Engine displacement:109.7cc
  • Power:8.28 bhp at 7500 rpm
  • Torque:8.5 Nm @ 5500 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:181 mm
  • Fuel Tank Capacity:12 Liter

Variants

Variants
 Variants  Showroom price  On road price
Max 4R 41024 46152

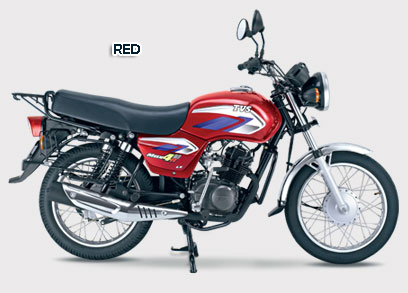

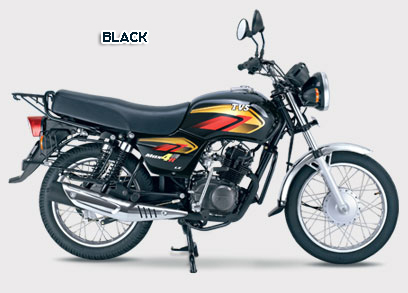

Colors & Images

Performance

Performance
Engine 4-stroke single cylinder
Engine displacement 109.7cc
Maximum Power 8.28 bhp at 7500 rpm
Maximum Torque 8.5 Nm @ 5500 rpm
Top speed 80-85Kmph
Acceleration (0-60Kmph) 9-10 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition C.D.I
Compression Ratio -
No of Cylinder 1
Bore & Stroke 53 mm x 49 mm
Spark Plugs Per Cylinder 3
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Kick Start

Brake

Brake
Front Brake 130 mm drums
Rear Brake 130 mm drums
ABS No

Suspension

Suspension
Front Suspension Telescopic forks
Rear Suspension 4 shock absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75x17-4 ply
Rear Tyre 3.00x17-6 ply
Wheel Type spoke
Tubeless Tyres No

Battery

Battery
Battery Type MF
Capacity 2.5 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analog
Odometer Analog
Engine RPM meter -
Fuel Gauge -

Lighting

Lighting
Head Light 12V,35/35W
Tail Light 12V 5/10W

Dimension

Dimension
Overall Length 2005 mm
Overall Width 733 mm
Overall Height 1055 mm
Ground Clearance 181 mm
Seat Height 800 mm
Wheelbase 1240 mm
Kerb/Wet Weight 118 Kg
Fuel Tank Capacity 12 Liter
Reserve Fuel Capacity 2.5 Liter
