TVS Apache RTR160
TVS Apache RTR160
TVS Apache RTR160
TVS Apache RTR160
TVS Apache RTR160
TVS Apache RTR160

TVS Apache RTR160

72,944 Onwords | Ex-Showroom Chennai

Overview

  • Milege:60 kmpl
  • Engine displacement:159.7 cc
  • Power:11.19 kW (15.2 bhp) @8500 rpm
  • Torque:13.1 Nm @ 4000 rpm
  • Gear box:5 manual
  • Ground clearence:165 mm
  • Fuel Tank Capacity:16 Liter

Variants

Variants
 Variants  Showroom price  On road price
Apache RTR160 72944 82062

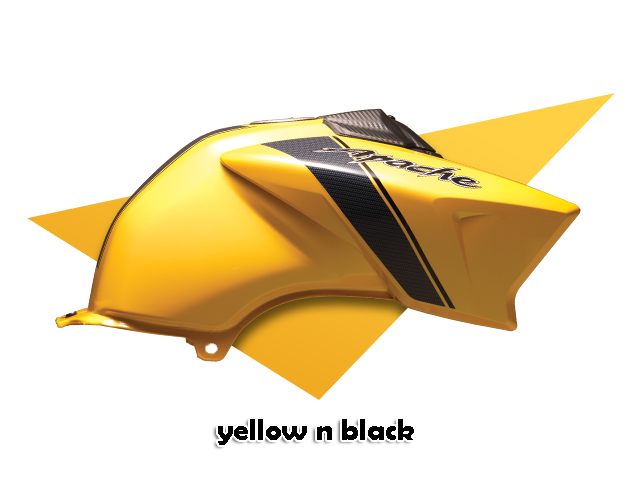

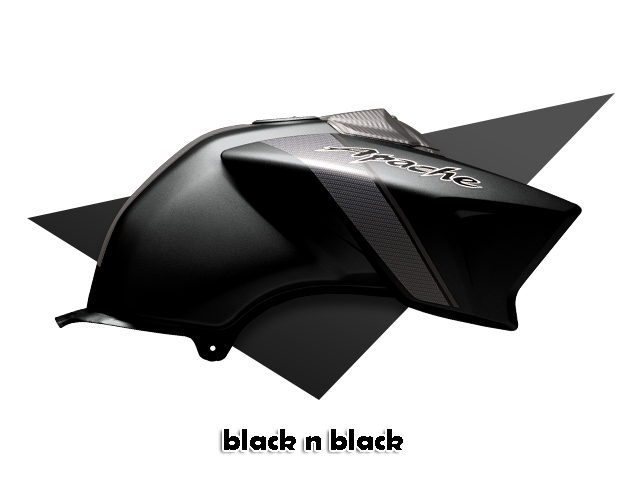

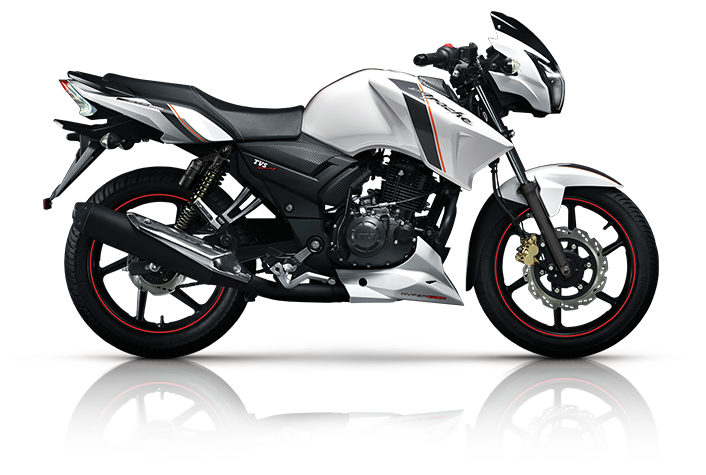

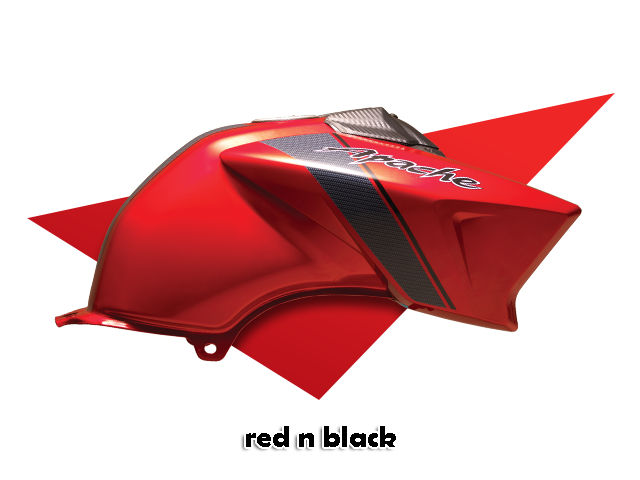

Colors & Images

Performance

Performance
Engine 4 Stroke
Engine displacement 159.7 cc
Maximum Power 11.19 kW (15.2 bhp) @8500 rpm
Maximum Torque 13.1 Nm @ 4000 rpm
Top speed 118
Acceleration (0-60Kmph) 5-6 s
Fuel Delivery System UCAL BS-26 Carburetor
Cooling Air cooling
Ignition IDI-Dual mode digital ignition
Compression Ratio 9.5:1
No of Cylinder 1
Bore & Stroke 62 mm x 52.9 mm
Spark Plugs Per Cylinder 2
Valves Per Cylinder 1
Gear box 5 manual
Clutch Multiplate Wet
Starting system Kick Start & Electri start

Brake

Brake
Front Brake 270mm Petal Disc with ABS & RLP
Rear Brake 200 mm Petal Disc 130 mm Drum Brake
ABS No

Suspension

Suspension
Front Suspension Telescopic Forks, 105 mm Stroke
Rear Suspension Monotube Inverted Gas-filled shox (MIG) with spring aid

Wheels & Tyres

Wheels & Tyres
Front Tyre 90/90 x 17
Rear Tyre 110/80 x 17
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 9Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Digital
Odometer Digital
Engine RPM meter Analog
Fuel Gauge Digital

Lighting

Lighting
Head Light 35/35W Halogen
Tail Light LED

Dimension

Dimension
Overall Length 2085 mm
Overall Width 730 mm
Overall Height 1105 mm
Ground Clearance 165 mm
Seat Height 790 mm
Wheelbase 1300 mm
Kerb/Wet Weight 137 Kg
Fuel Tank Capacity 16 Liter
Reserve Fuel Capacity 2.5 Liter
