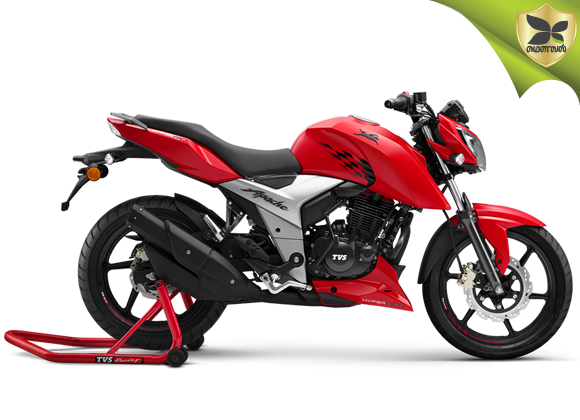

TVS Apache RTR 160 4V

81,490 Onwords | Ex-Showroom Chennai


Overview


  • Milege:60 kmpl
  • Engine displacement:159.7 cc
  • Power:12.35 kW @ 8000 rpm (16.8 PS @8000 rpm) (FI) / 12.14 kW @ 8000 rpm (16.5 PS @8000 rpm)
  • Torque:14.8 Nm @ 6500 rpm
  • Gear box:5 speed gear box
  • Ground clearence:180 mm
  • Fuel Tank Capacity:12 l

Variants

Variants
 Variants  Showroom price  On road price
Apache RTR 160 4V (carb, single disc) 81490 91676
Apache RTR 160 4V(carb, dual disc) 84490 95051
Apache RTR 160 4V(Fi, Dual disc) 89990 101238

Overview

The 2018 Apache RTR 160 4V gets headlamp design, instrument console, fuel tank and even its LED tail lamp from RTR 200 4V. But, this model get the single seat from its older version and new side panels different one compared to RTR 200 4V. The new 2018 model gets the new monoshock unit at rear and Showa telescopic forks at front.

Mechanically, this model gets the same  159.7cc engine, but now with 4-valve unit and different power tune. This engine delivers 16.8PS(FI) and 16.5PS(carb) at 8000rpm, while peak torque produced is 14.8Nm @ 6500rpm. And, this bike claims a 0-60kmph time of 4.73 seconds for the carb version and 4.8 seconds for the Fi version. Braking duties are carried by 270mm front disc brake and a standard 130mm rear drum unit. And, this model also have  an optional 200m rear disc brake unit.

Performance

Performance
Engine SI, 4 stroke, Oil cooled
Engine displacement 159.7 cc
Maximum Power 12.35 kW @ 8000 rpm (16.8 PS @8000 rpm) (FI) / 12.14 kW @ 8000 rpm (16.5 PS @8000 rpm)
Maximum Torque 14.8 Nm @ 6500 rpm
Top speed 114 (FI) / 113
Acceleration (0-60Kmph) 4.8 (FI) / 4.73
Fuel Delivery System Fuel Injection: Bosch- Closed loop / Carb: UCAL/ Keihin VE CT6[A]
Cooling Oil cooled
Ignition Mapped ignition system (FI) / TCI - Transistor Controlled Ignition
Compression Ratio 10.15 :1
No of Cylinder 1
Bore & Stroke 62x52.9 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 4
Gear box 5 speed gear box
Clutch Wet multi plate
Starting system Electric & Kick- Start

Brake

Brake
Front Brake Disc (270 mm Petal type)
Rear Brake Drum (130 mm)/ Disc (200 mm Petal type)
ABS No

Suspension

Suspension
Front Suspension Telescopic Forks
Rear Suspension Mono Tube - Monoshock

Wheels & Tyres

Wheels & Tyres
Front Tyre 90/90-17 49P Tubeless
Rear Tyre Drum - 110/80-17 57P Tubeless Disc - 130/70-17 M/C 62P Tubeless
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 9Ah
Voltage 12V

Instrument Console

Instrument Console
Speedometer Digital
Odometer Digital
Engine RPM meter Digital
Fuel Gauge Digital

Lighting

Lighting
Head Light AHO 12V, 60/55W H4 bulb, with all-time ON LED position lamp (FI) / AHO 12V, 35/35W HS1 bulb, with all-time ON LED position lamp
Tail Light LED - 1W/ 2.5 W

Dimension

Dimension
Overall Length 2035 mm / 2050 mm
Overall Width 790 mm
Overall Height 1050 mm
Ground Clearance 180 mm
Seat Height 800 mm
Wheelbase 1357 mm
Kerb/Wet Weight 147 (FI) /
Fuel Tank Capacity 12 l
Reserve Fuel Capacity 2.5 l
