Honda Dio

52,093 Onwords | Ex-Showroom Chennai


Overview


  • Milege:60 kmpl
  • Engine displacement:109.2cc
  • Power:5.83 kW (8bhp) @7000 rpm
  • Torque:8.91 Nm @ 5500 rpm
  • Gear box:Automatic
  • Ground clearence:158 mm
  • Fuel Tank Capacity:5.3 Liter

Variants

Variants
 Variants  Showroom price  On road price
Dio 52093 58605
New Dio 50772 56531

Overview

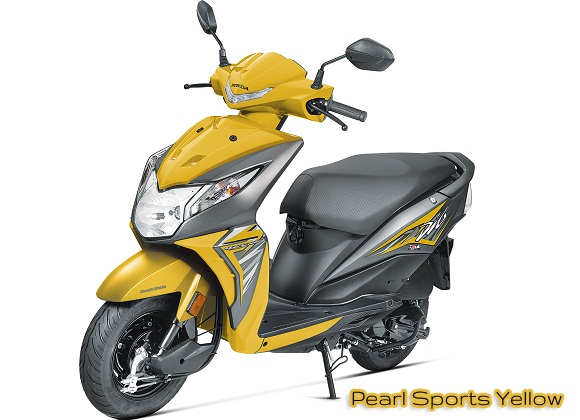

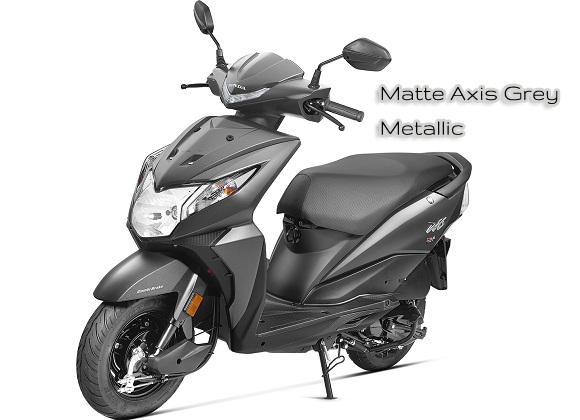

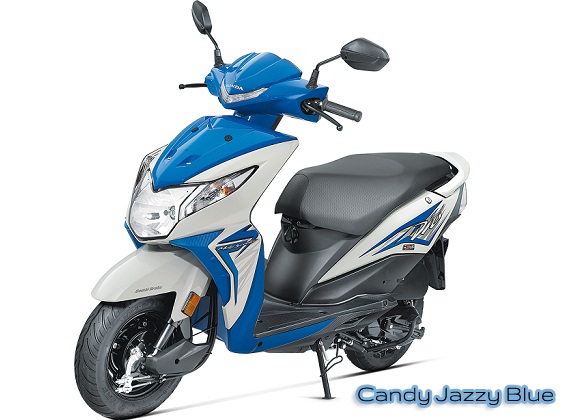

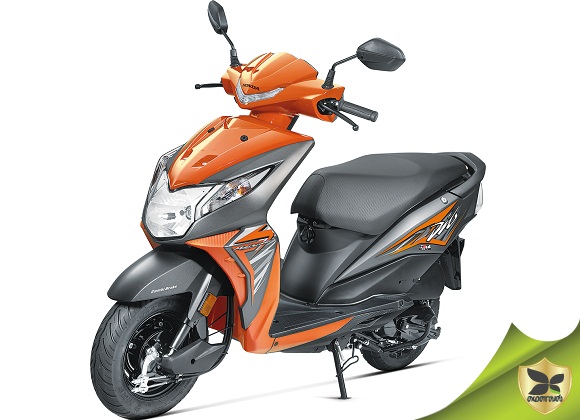

This Scooter is available totally in 5 colors.

In this model, the 1-cylinder and 109.2 cc capacity engine is fitted. This petrol engine delivers the power of  8 bhp (7500 rpm)and torque of   8.77 Nm (5500rpm). As per ARAI certification, this model gives mileage of 60 Kmpl.

This commuter bike has capable of crossing the speed of 60Kmph within 7 to 8 seconds. And this bike reaches the top speed of 83 Kmph approximately.

Performance

Performance
Engine Air cooled, 4 stroke, SI engine
Engine displacement 109.2cc
Maximum Power 5.83 kW (8bhp) @7000 rpm
Maximum Torque 8.91 Nm @ 5500 rpm
Top speed 83kmph
Acceleration (0-60Kmph) -
Fuel Delivery System Carburetor
Cooling Aircooling
Ignition C.D.I
Compression Ratio 9.5:1
No of Cylinder 1
Bore & Stroke 50X 55.6mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box Automatic
Clutch Automatic
Starting system Self

Brake

Brake
Front Brake Drum 130mm/
Rear Brake Drum 130mm (CBS)
ABS No

Suspension

Suspension
Front Suspension Spring loaded hydraulic type
Rear Suspension Spring loaded hydraulic type

Wheels & Tyres

Wheels & Tyres
Front Tyre 90/100-10
Rear Tyre 90/100-10
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 3Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analog
Odometer Analog
Engine RPM meter Analog
Fuel Gauge Analog

Lighting

Lighting
Head Light 12V 35/35W
Tail Light LED Tail Lamp

Dimension

Dimension
Overall Length 1781 mm
Overall Width 710 mm
Overall Height 1133 mm
Ground Clearance 158 mm
Seat Height 765 mm
Wheelbase 1238 mm
Kerb/Wet Weight 105 Kg
Fuel Tank Capacity 5.3 Liter
Reserve Fuel Capacity 1.3 Liter
