Honda CB Shine SP

62,942 Onwords | Ex-Showroom Chennai


Overview


  • Milege:70 Kmpl
  • Engine displacement:124.7cc
  • Power:7.88 kw (10.57 bhp) @ 7500 rpm
  • Torque:10.3 Nm @5500 rpm
  • Gear box:5 Speed Manual
  • Ground clearence:160 mm
  • Fuel Tank Capacity:10.5 Ltr

Variants

Variants
 Variants  Showroom price  On road price
CB Shine SP - STD 62942 70810
CB Shine SP - DLX 65378 73550
CB Shine SP - CBS 67328 75744

Overview

This new model developed from old CB shine model and did some changes. There is no change in engine. In this model, the same 1-cylinder and 124.7 cc capacity engine is fitted. But in this model new 5 speed gear box is fitted. So, it gives the better performance.

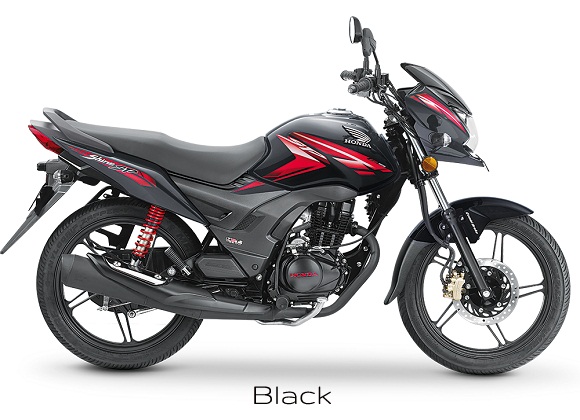

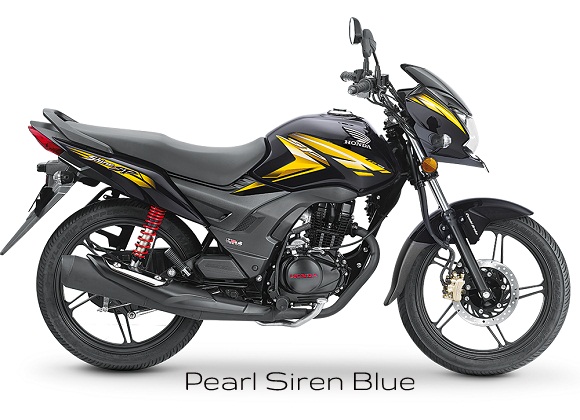

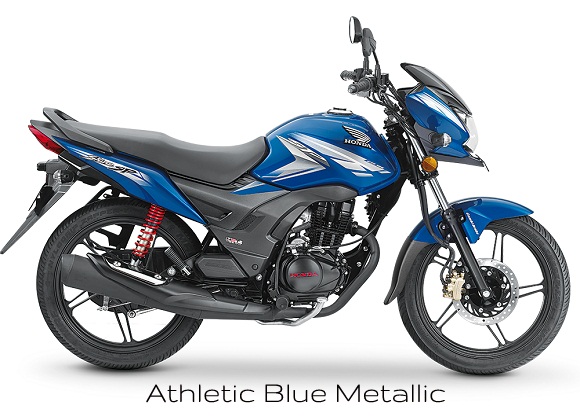

This petrol engine delivers the power of 10.54 bhp (7500 rpm) and torque of 10.64 Nm (6000rpm). Some additional cosmetic changes also made. This model available in three variants with STD, DLX and CBS. This model available in 5 colors  including Black, Athletic Blue Metallic, Pearl Amazing White, Imperial Red Metallic, Geny Grey Metallic and Pearl Siren Blue.

Performance

Performance
Engine Air cooled, 4 stroke, SI engine
Engine displacement 124.7cc
Maximum Power 7.88 kw (10.57 bhp) @ 7500 rpm
Maximum Torque 10.3 Nm @5500 rpm
Top speed 93kmph
Acceleration (0-60Kmph) 11 -12 s
Fuel Delivery System Carburetor
Cooling Air cooling
Ignition Digital CDI
Compression Ratio 9.2:1
No of Cylinder 1
Bore & Stroke 52.4X 57.8mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 5 Speed Manual
Clutch Multiple Wet
Starting system Kick & Electric Self Start

Brake

Brake
Front Brake Disc/Drum
Rear Brake Drum
ABS No

Suspension

Suspension
Front Suspension Telescopic Fork
Rear Suspension Spring Loaded Hydraulic Type (Swing Arm)

Wheels & Tyres

Wheels & Tyres
Front Tyre 80/100-18 Tyre
Rear Tyre 80/100-18
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF
Capacity 3Ah
Voltage 12V

Instrument Console

Instrument Console
Speedometer Analoge
Odometer Digital
Engine RPM meter Digital
Fuel Gauge Digital

Lighting

Lighting

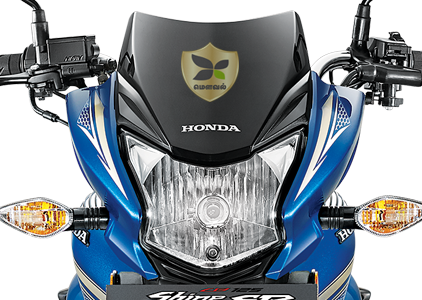

Head Light 12V 35/35W
Tail Light -

Dimension

Dimension
Overall Length 2007 mm
Overall Width 762 mm
Overall Height 1085 mm
Ground Clearance 160 mm
Seat Height 790 mm
Wheelbase 1266 mm
Kerb/Wet Weight 124 Kg (CBS Variant)
Fuel Tank Capacity 10.5 Ltr
Reserve Fuel Capacity 1.3 Ltr
