54,700 Onwords | Ex-Showroom Chennai

Overview

  • Milege:83.00 Kmpl
  • Engine displacement:124.7 cc
  • Power:6.72 KW (9.12 Ps) @ 7000 rpm
  • Torque:10.35 Nm @ 4000 rpm
  • Gear box:4 Speed Constant Mesh
  • Ground clearence:150 mm
  • Fuel Tank Capacity:13 Liter

Variants

Variants
 Variants  Showroom price  On road price
Super Splendor 54700 61538

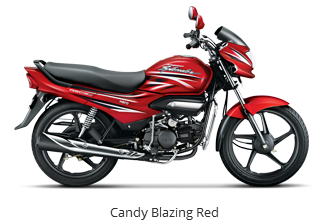

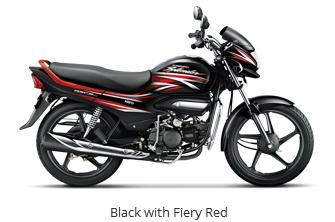

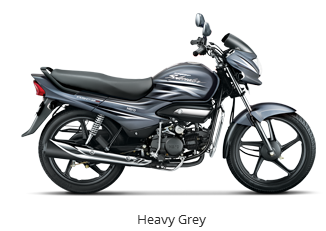

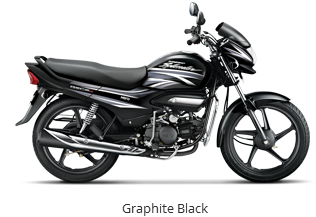

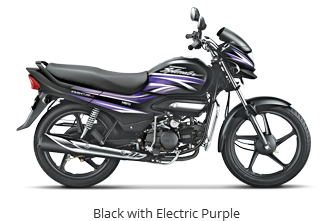

Colors & Images

Performance

Performance
Engine Air cooled, 4 - stroke single cylinder OHC
Engine displacement 124.7 cc
Maximum Power 6.72 KW (9.12 Ps) @ 7000 rpm
Maximum Torque 10.35 Nm @ 4000 rpm
Top speed 90 Kmph
Acceleration (0-60Kmph) 8 secs
Fuel Delivery System -
Cooling Air cooling
Ignition Advanced micro processor ignition (AMI) system
Compression Ratio 9.1 : 1
No of Cylinder 1
Bore & Stroke 52.4 X 57.8 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 Speed Constant Mesh
Clutch Multi Plate Wet
Starting system Kick Start / Self Start

Brake

Brake
Front Brake Internal expanding type - (130 mm)
Rear Brake Internal expanding type - (130 mm)
ABS -

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing arm with 5 step adjustable hydraulic shock absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 X 18 - 42 P / 4 PR
Rear Tyre 2.75 X 18 - 48 P / 6 PR
Wheel Type Alloy
Tubeless Tyres yes

Battery

Battery
Battery Type MF battery
Capacity 3 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Analogue
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light 35W / 35W � Halogen bulb ( Multi- Reflector Type )
Tail Light 5 W - 21 W (Multi-Reflector Type)

Dimension

Dimension
Overall Length 1995 mm
Overall Width 735 mm
Overall Height 1095 mm
Ground Clearance 150 mm
Seat Height 785 mm
Wheelbase 1265 mm
Kerb/Wet Weight 121 Kg
Fuel Tank Capacity 13 Liter
Reserve Fuel Capacity 1 Liter
