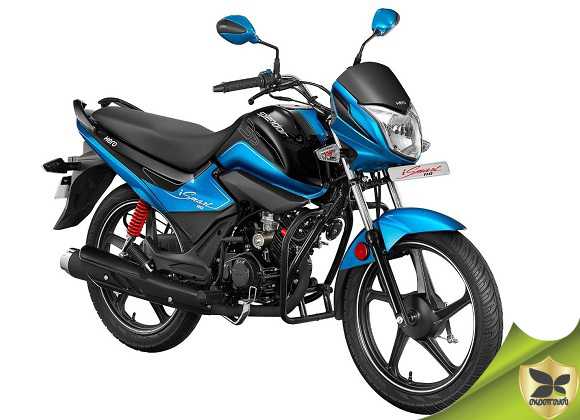

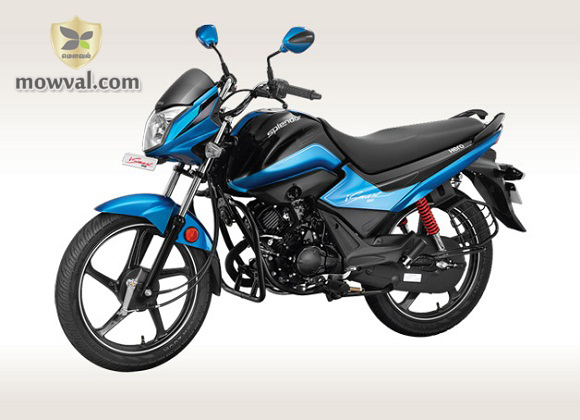

Hero Splendor iSmart 110

53,700 Onwords | Ex-Showroom Chennai


Overview


  • Milege:65 Kmpl
  • Engine displacement:109.15cc
  • Power:7 Kw @ 7500 RPM
  • Torque:9 Nm @ 5500 RPM
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:165 mm
  • Fuel Tank Capacity:8.5 Liter

Variants

Variants
 Variants  Showroom price  On road price
Splendor iSmart 53700 60415

Overview

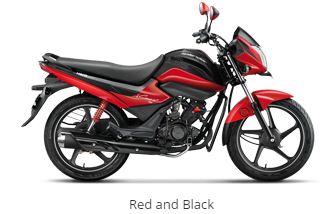

This is the first fully in-house developed motorcycle by Hero Motocorp and also gets the patented i3S technology. This i3S technology to provide best in class mileage figures. This model available with four dual tone colour options such as Silver & Black, Blue & Black, Red & Black and Sports Red.

The new 110 cc single cylinder engine is fitted in this model. This engine delivers the power of 9.1 bhp at 7500 rpm and torque of 9 Nm at 5500 rpm. The engine is mated to a 4-speed manual transmission. And it crosses 0-60kmph speed with time of just 7.45 seconds.

The new iSmart 110 gets some best in class features such as 18" Black alloy wheels with tubeless tyres, dual tone rear view mirrors, digital-analog instrument console, and the first-in-class Automatic Headlamp.


Performance

Performance
Engine Air Cooled, 4 Stroke Single Cylinder , OHC
Engine displacement 109.15cc
Maximum Power 7 Kw @ 7500 RPM
Maximum Torque 9 Nm @ 5500 RPM
Top speed 90 Kmph
Acceleration (0-60Kmph) 9-10 S
Fuel Delivery System Carburettor
Cooling Air cooling
Ignition DC - Digital CDI
Compression Ratio 10:01
No of Cylinder 1
Bore & Stroke -
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Self Start / Kick Start

Brake

Brake
Front Brake Internal Expanding Shoe Type (130 mm)
Rear Brake Internal Expanding Shoe Type (110 mm)
ABS no

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with Adjustable Hydraulic Shock Absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 18 - 4 PR | 80/100 - 47P Tyre w Tube | Tubeless Tyre
Rear Tyre 2.75 x 18 - 6 PR | 80/100 - 54P Tyre w Tube | Tubeless Tyre
Wheel Type Spoke Wheel / Cast Wheel
Tubeless Tyres Yes

Battery

Battery
Battery Type MF battery
Capacity 3 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Digital
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light HS1 Bulb (35W/35W)
Tail Light P21/5 Bulb (5W/21W)

Dimension

Dimension
Overall Length 2015 mm
Overall Width 770 mm
Overall Height 1055 mm
Ground Clearance 165 mm
Seat Height -
Wheelbase 1245 mm
Kerb/Wet Weight 115 Kg (Self)
Fuel Tank Capacity 8.5 Liter
Reserve Fuel Capacity 2.0 Liter
