47,200 Onwords | Ex-Showroom Chennai

Overview

  • Milege:65 Kmpl
  • Engine displacement:97.2 cc
  • Power:5.5 Kw (7.5 Ps) @ 8000 rpm
  • Torque:7.95 Nm @ 5000 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:159 mm
  • Fuel Tank Capacity:11 Liter

Variants

Variants
 Variants  Showroom price  On road price
KICK START DRUM BRAKE ALLOY WHEEL 47200 53100
KICK START DRUM BRAKE SPOKE WHEEL 46550 52369

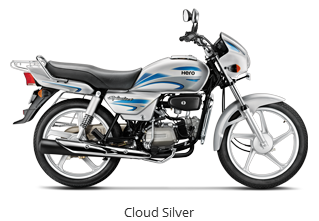

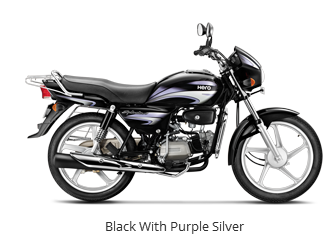

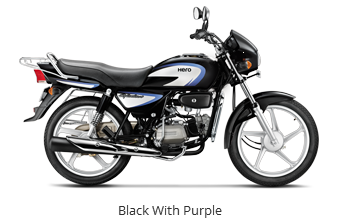

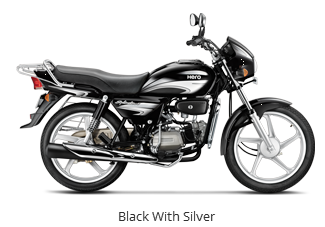

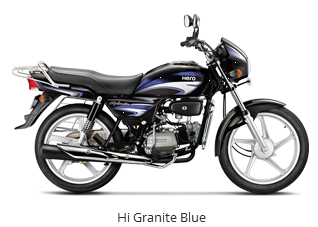

Colors & Images

Performance

Performance
Engine Air Cooled, 4 - Stroke Single Cylinder OHC
Engine displacement 97.2 cc
Maximum Power 5.5 Kw (7.5 Ps) @ 8000 rpm
Maximum Torque 7.95 Nm @ 5000 rpm
Top speed 82 Kmph
Acceleration (0-60Kmph) 9-10s
Fuel Delivery System Side Draft, Variable Venturi Type with TCIS
Cooling Air cooling
Ignition CDI
Compression Ratio 9.9:1
No of Cylinder 1
Bore & Stroke 50.0 x 49.5 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Kick Start

Brake

Brake
Front Brake Internal expanding shoe type (130 mm) - Non Asbestos Type
Rear Brake Internal expanding shoe type (130 mm) - Non Asbestos Type
ABS no

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with Adjustable Hydraulic Shock Absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 18 – 42 P / 4 PR
Rear Tyre 2.75 x 18 – 48 P / 6 PR
Wheel Type Spoke wheel / Cast wheel
Tubeless Tyres yes

Battery

Battery
Battery Type MF Battery, M-4
Capacity 3 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer -
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light 35W / 35W – Halogen bulb ( Multi-focal Reflector )
Tail Light 12 V - 5 / 10W (Multi-Reflector)

Dimension

Dimension
Overall Length 1970 mm
Overall Width 720 mm
Overall Height 1040 mm
Ground Clearance 159 mm
Seat Height 785 mm
Wheelbase 1230 mm
Kerb/Wet Weight 109 Kg
Fuel Tank Capacity 11 Liter
Reserve Fuel Capacity 1 Liter
