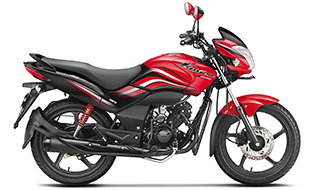

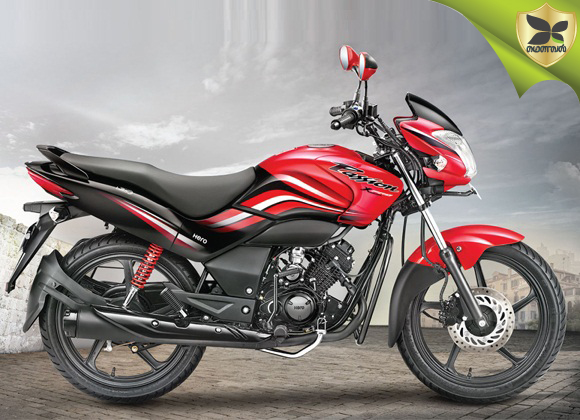

Hero Passion XPRO

56,900 Onwords | Ex-Showroom Chennai


Overview


  • Milege:64.00 Kmpl
  • Engine displacement:109.15 cc
  • Power:7 kW @ 7500 rpm
  • Torque:9 N m @ 5500 rpm
  • Gear box:4 Speed constant mesh
  • Ground clearence:170 mm
  • Fuel Tank Capacity:9.5 Liter

Variants

Variants
 Variants  Showroom price  On road price
DRUM BRAKE ALLOY WHEEL 56900 64012
DISC BRAKE ALLOY WHEEL 58900 66262
SELF START DRUM BRAKE ALLOY WHEEL 54125 60891
SELF START DRUM BRAKE SPOKE WHEEL 53125 59766
SELF START DISC BRAKE ALLOY WHEEL 56100 63113

Overview

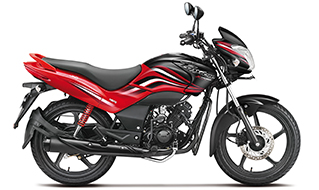

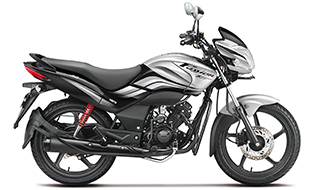

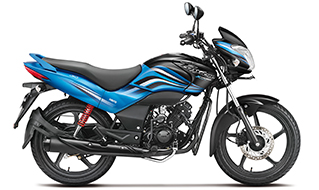

This Commuter bike is available totally in 8 colors.

In this model, the 1-cylinder and 109.1 cc capacity engine is fitted. This petrol engine delivers the power of  9.39 bhp (7500 rpm) and torque of 9 Nm (5500rpm). As per ARAI certification, this model gives mileage of 64 Kmpl.

This commuter bike has capable of crossing the speed of 60Kmph within 7 to 8 seconds. And this bike reaches the top speed of 95 Kmph approximately.

Performance

Performance
Engine Air cooled, 4 - stroke single cylinder OHC
Engine displacement 109.15 cc
Maximum Power 7 kW @ 7500 rpm
Maximum Torque 9 N m @ 5500 rpm
Top speed 95 Kmph
Acceleration (0-60Kmph) 7-8 s
Fuel Delivery System Side Draft Variable Venturi Carburator
Cooling Air cooling
Ignition Full Transisterised Ignition System
Compression Ratio -
No of Cylinder 1
Bore & Stroke 50.0 mm x 55.6 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 Speed constant mesh
Clutch Multiplate wet
Starting system Kick Start / Electric Start

Brake

Brake
Front Brake 240 mm Dia Disc & Internal expanding shoe type (130 mm)
Rear Brake Internal expanding shoe type (130 mm)
ABS -

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with Adjustable Hydraulic Shock Absorber

Wheels & Tyres

Wheels & Tyres
Front Tyre 80 / 100 x 18 - 47 P (Tubeless forr Cast Wheel)
Rear Tyre 90 / 90 x 18 - 51 P (Tubeless for Cast Wheel)
Wheel Type Alloy
Tubeless Tyres yes

Battery

Battery
Battery Type MF battery
Capacity 3 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Digital
Engine RPM meter -
Fuel Gauge Digital

Lighting

Lighting
Head Light 12 V - 35 W / 35 W - Halogen Bulb (Multi Reflector type)
Tail Light 12 V - 5 W / 21 W (Multi Reflector type)

Dimension

Dimension
Overall Length 2005 mm
Overall Width 765 mm
Overall Height 1115 mm
Ground Clearance 170 mm
Seat Height 785 mm
Wheelbase 1265 mm
Kerb/Wet Weight 113 Kg (Spoke Kick), 114 கிலோ கிராம் (Spoke Self), 115 Kg (Cast Kick), 116 Kg (Cast Self)
Fuel Tank Capacity 9.5 Liter
Reserve Fuel Capacity 2.1 Liter
