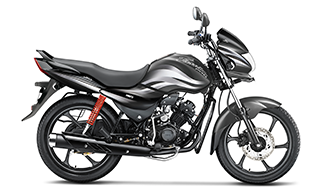

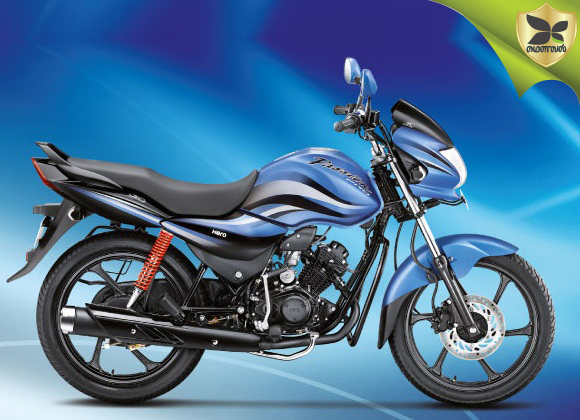

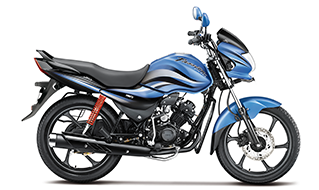

Hero Passion PRO 110

55,800 Onwords | Ex-Showroom Chennai


Overview


  • Milege:72 Kmpl
  • Engine displacement:109.15 cc
  • Power:7 kW @ 7500 rpm
  • Torque:9 Nm @ 5500 rpm
  • Gear box:4 Speed constant mesh
  • Ground clearence:165 mm
  • Fuel Tank Capacity:12.8 Liter

Variants

Variants
 Variants  Showroom price  On road price
DRUM BRAKE ALLOY WHEEL 55800 62775
DISC BRAKE ALLOY WHEEL 57800 65025

Overview

This Commuter bike is available totally in 3 colors.

In this model, the 1-cylinder and 109.15 cc capacity engine is fitted. This petrol engine delivers the power of  9.39 bhp (7500 rpm)and torque of 9 Nm (5500rpm). As per ARAI certification, this model gives mileage of 72 Kmpl.

This commuter bike has capable of crossing the speed of 60Kmph within 9 to 10 seconds. And this bike reaches the top speed of 90 Kmph approximately.

Performance

Performance
Engine Air-cooled, 4-stroke single cylinder OHC
Engine displacement 109.15 cc
Maximum Power 7 kW @ 7500 rpm
Maximum Torque 9 Nm @ 5500 rpm
Top speed 90 Kmph
Acceleration (0-60Kmph) 9-10secs
Fuel Delivery System Side Draft, Variable Venturi Type with TCIS Carburator
Cooling Air cooling
Ignition DC - Digital CDI
Compression Ratio -
No of Cylinder 1
Bore & Stroke 50.0 x 49.5 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 Speed constant mesh
Clutch Multiplate wet
Starting system Kick Start / Electric Start

Brake

Brake
Front Brake Disc Break-Dia 240 mm
Rear Brake Internal Expanding Shoe Type (130 mm)
ABS no

Suspension

Suspension
Front Suspension Telescopic hydraulic shock absorbers
Rear Suspension Swing arm with 5 step Adjustable Hydraulic Shock Absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 18 - 6 PR / 50 L
Rear Tyre 3.00 x 18 - 6 PR / 52 P
Wheel Type Cast wheels
Tubeless Tyres Yes

Battery

Battery
Battery Type MF battery
Capacity 3 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Digital
Engine RPM meter -
Fuel Gauge Digital

Lighting

Lighting
Head Light 12 V -35 W / 35W - Halogen bulb (Multi Reflector Type)
Tail Light 12V - 5/ 10 W (Multi-Reflector)

Dimension

Dimension
Overall Length 1980 mm
Overall Width 840 mm
Overall Height 1085 mm
Ground Clearance 165 mm
Seat Height 795 mm
Wheelbase 1235 mm
Kerb/Wet Weight 119 Kg (Self)
Fuel Tank Capacity 12.8 Liter
Reserve Fuel Capacity 1 Liter
