61,700 Onwords | Ex-Showroom Chennai

Overview

  • Milege:60 knpl
  • Engine displacement:124.6 cc
  • Power:6.8 Kw(9.1 bhp) @ 7000 rpm
  • Torque:10.2 Nm @ 5000 rpm
  • Gear box:Variomatic Drive
  • Ground clearence:155mm
  • Fuel Tank Capacity:-

Variants

Variants
 Variants  Showroom price  On road price
DRUM BRAKE ALLOY WHEEL 61700 69410
DISC BRAKE ALLOY WHEEL 64100 72110
DISC BRAKE ALLOY WHEEL - FI 68500 77060

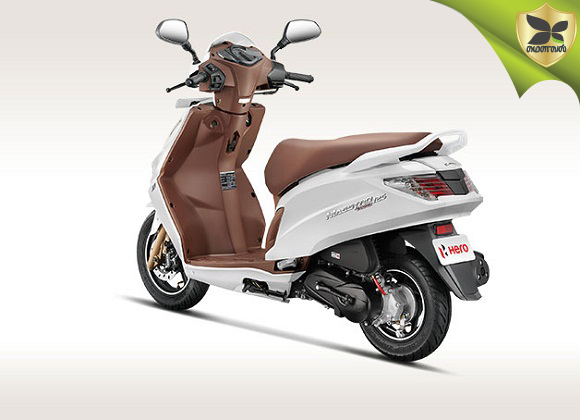

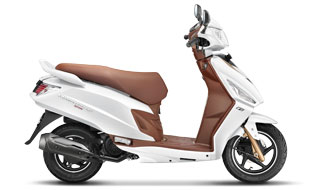

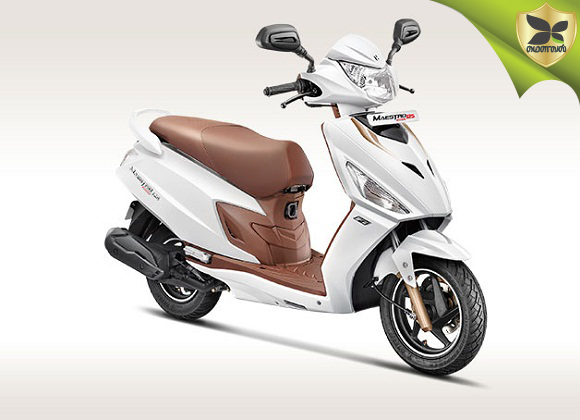

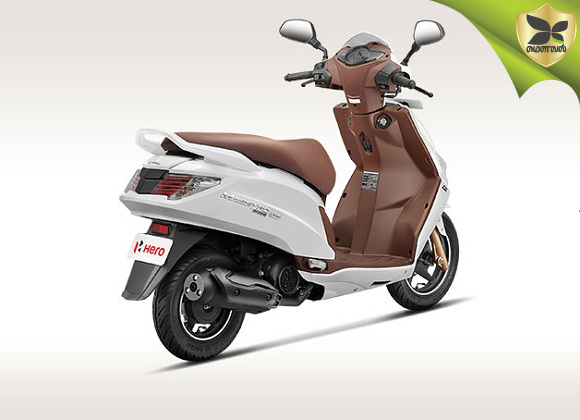

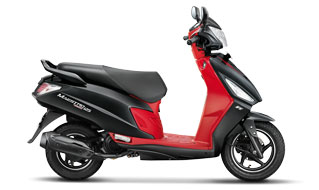

Colors & Images

Performance

Performance
Engine Air cooled, 4-stroke single cylinder OHC
Engine displacement 124.6 cc
Maximum Power 6.8 Kw(9.1 bhp) @ 7000 rpm
Maximum Torque 10.2 Nm @ 5000 rpm
Top speed -
Acceleration (0-60Kmph) -
Fuel Delivery System Fuel Injection
Cooling Air cooling
Ignition -
Compression Ratio -
No of Cylinder 1
Bore & Stroke -
Spark Plugs Per Cylinder 2
Valves Per Cylinder 4
Gear box Variomatic Drive
Clutch Dry, Centrifugal
Starting system Self-Start / Kick-Start

Brake

Brake
Front Brake Disc Brake 190 mm
Rear Brake Drum Brake Dia 130 mm
ABS No

Suspension

Suspension
Front Suspension Telescopic Fork
Rear Suspension Single Coil spring Hydraulic type

Wheels & Tyres

Wheels & Tyres
Front Tyre 90/90-12
Rear Tyre 90/100-10
Wheel Type Alloy
Tubeless Tyres Yes

Battery

Battery
Battery Type MF Batttery
Capacity 4.0Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analouge
Odometer Digital
Engine RPM meter -
Fuel Gauge Digital

Lighting

Lighting
Head Light 12 V - 35W/35W - Halogen Bulb
Tail Light 12 V - 0.4 /1.6 W - (LED Type)

Dimension

Dimension
Overall Length 1843 mm
Overall Width 718 mm
Overall Height 1188 mm
Ground Clearance 155mm
Seat Height -
Wheelbase 1261 mm
Kerb/Wet Weight 110 kg
Fuel Tank Capacity -
Reserve Fuel Capacity -
