Hero Karizma ZMR

1,07,100 Onwords | Ex-Showroom Chennai


Overview


  • Milege:51Kmpl
  • Engine displacement:223 cc
  • Power:14.9 kW (20 BHP) @ 8000 rpm
  • Torque:19.7 N m @ 6500 rpm
  • Gear box:5 speed Manual
  • Ground clearence:150 mm
  • Fuel Tank Capacity:15.3 Liter

Variants

Variants
 Variants  Showroom price  On road price
Karizma ZMR 107100 120488

Overview

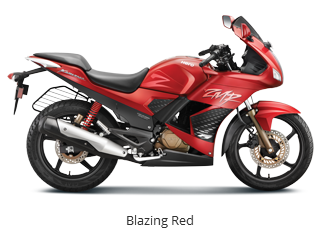

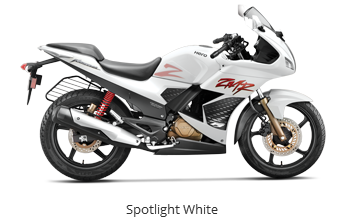

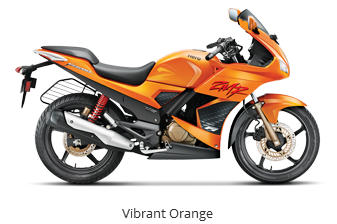

This Sport bike is available totally in 4 colors such as Blazing Red, Panther Black, Spotlight White and Vibrant Orange.

In this model, the 1-cylinder and 223 cc capacity engine is fitted. This petrol engine delivers the power of  20 bhp (8000 rpm)and torque of 19.7 Nm (6500rpm). As per ARAI certification, this model gives mileage of 51 Kmpl.

This Sport bike has capable of crossing the speed of 60Kmph within 3.6 seconds. And this bike reaches the top speed of 129Kmph approximately.

Performance

Performance
Engine Air cooled, 4- stroke single cylinder OHC, Fuel Injection, Oil Cooler
Engine displacement 223 cc
Maximum Power 14.9 kW (20 BHP) @ 8000 rpm
Maximum Torque 19.7 N m @ 6500 rpm
Top speed 129 kmph
Acceleration (0-60Kmph) 3.60 secs
Fuel Delivery System Fuel Injection
Cooling Air cooling
Ignition (AMI) Advanced Microprocessor Ignition System
Compression Ratio -
No of Cylinder 1
Bore & Stroke 65.5 mm & 66.2 mm
Spark Plugs Per Cylinder -
Valves Per Cylinder -
Gear box 5 speed Manual
Clutch Multiplate Wet
Starting system Self starting

Brake

Brake
Front Brake Disc, Dia 276 mm
Rear Brake Disc, Dia 240 mm
ABS -

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with 5 Step Adjustable GRS System

Wheels & Tyres

Wheels & Tyres
Front Tyre 80 / 100 x 18 - 47 P
Rear Tyre 120 / 80 x 18 - 62 P
Wheel Type Alloy
Tubeless Tyres yes

Battery

Battery
Battery Type MF - Wet Battery
Capacity 7 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Digital
Odometer Digital
Engine RPM meter Digital
Fuel Gauge Digital

Lighting

Lighting
Head Light 12 V -35 W / 35W - Halogen bulb (Dual Head Light)
Tail Light -

Dimension

Dimension
Overall Length 2100 mm
Overall Width 805 mm
Overall Height 1190 mm
Ground Clearance 150 mm
Seat Height 796 mm
Wheelbase 1360 mm
Kerb/Wet Weight 157 Kg
Fuel Tank Capacity 15.3 Liter
Reserve Fuel Capacity -
