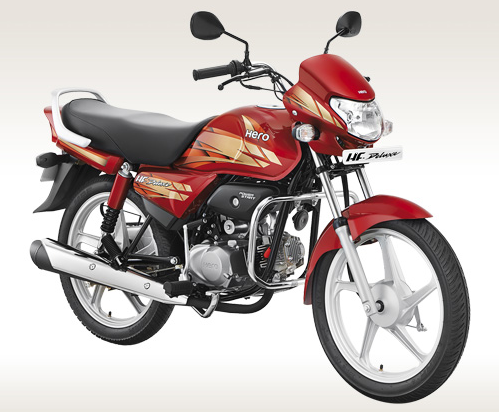

Hero HF Deluxe

43,017 Onwords | Ex-Showroom Chennai


Overview


  • Milege:61 kmpl
  • Engine displacement:97.2 cc
  • Power:6.15 kW (8.36 Ps) @ 8000 rpm
  • Torque:0.82 Kg-m (8.04 N-m) @ 4500 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:165 mm
  • Fuel Tank Capacity:10.5 Liter

Variants

Variants
 Variants  Showroom price  On road price
KICK START DRUM BRAKE SPOKE WHEEL 43017 48394
KICK START DRUM BRAKE ALLOY WHEEL 43933 49425
SELF START DRUM BRAKE SPOKE WHEEL 45200 50850
SELF START DRUM BRAKE ALLOY WHEEL 46218 51995

Overview

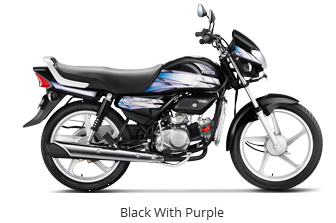

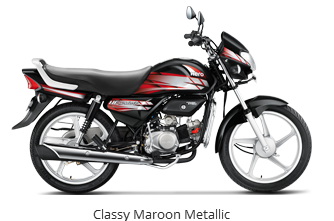

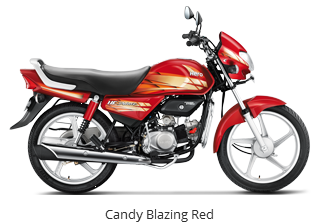

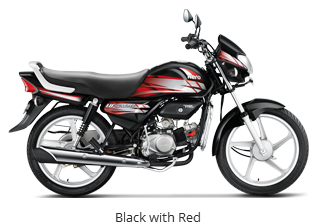

This Commuter bike is available totally in 5 colors.

In this model, the 1-cylinder and 97.2 cc capacity engine is fitted. This petrol engine delivers the power of   8.36 bhp (8000 rpm) and torque of 8.04 Nm (4500rpm). As per ARAI certification, this model gives mileage of 61 Kmpl.

This commuter bike has capable of crossing the speed of 60Kmph within 9 to 10 seconds. And this bike reaches the top speed of 100 Kmph approximately.

Performance

Performance
Engine Air Cooled, 4 - Stroke Single Cylinder OHC
Engine displacement 97.2 cc
Maximum Power 6.15 kW (8.36 Ps) @ 8000 rpm
Maximum Torque 0.82 Kg-m (8.04 N-m) @ 4500 rpm
Top speed 100 Kmph
Acceleration (0-60Kmph) 6-7 Sec
Fuel Delivery System Side Draft, Variable Venturi Type with TCIS
Cooling Air cooling
Ignition DC - Digital CDI
Compression Ratio 9.9:1
No of Cylinder 1
Bore & Stroke 50.0 x 49.5 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Self Start / Kick Start

Brake

Brake
Front Brake Internal expanding shoe type (130 mm)
Rear Brake Internal expanding shoe type (110 mm)
ABS No

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing arm with 2 step adjustable hydraulic shock absorber

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 X 18 - 4 PR / 42 P
Rear Tyre 2.75 X 18 - 6 PR / 48 P
Wheel Type Spoke wheel / Cast wheel
Tubeless Tyres Yes

Battery

Battery
Battery Type MF Battery
Capacity 2.5 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer -
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light 12 V - 35W / 35W - Halogen bulb, Trapezoidal MFR
Tail Light 12 V - 5 / 21 W - MFR

Dimension

Dimension
Overall Length 1965 mm
Overall Width 720 mm
Overall Height 1045 mm
Ground Clearance 165 mm
Seat Height 785 mm
Wheelbase 1235 mm
Kerb/Wet Weight 112 Kg
Fuel Tank Capacity 10.5 Liter
Reserve Fuel Capacity 1.8 Liter
