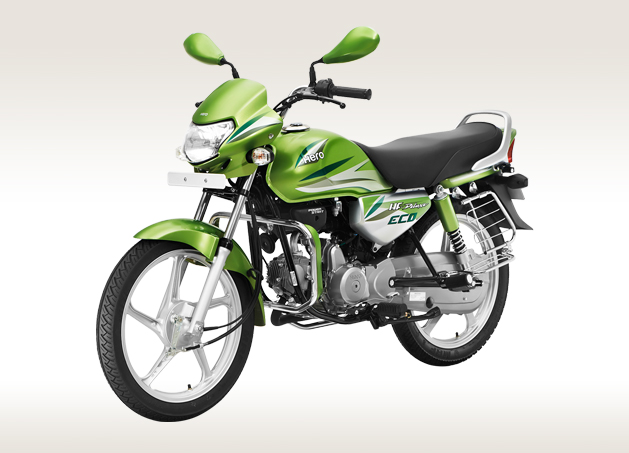

Hero HF Deluxe ECO

47,218 Onwords | Ex-Showroom Chennai


Overview


  • Milege:61 Kmpl
  • Engine displacement:97.2 cc
  • Power:6.15 kW (8.36 Ps) @ 8000 rpm
  • Torque:0.82 Kg-m (8.04 N-m) @ 4500 rpm
  • Gear box:4 - Speed Constant Mesh
  • Ground clearence:165 mm
  • Fuel Tank Capacity:10.5 Liter

Variants

Variants
 Variants  Showroom price  On road price
HF Deluxe ECO 47218 53120

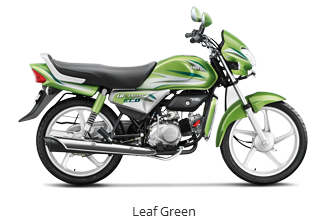

Colors & Images

Performance

Performance
Engine Air Cooled, 4 - Stroke Single Cylinder OHC
Engine displacement 97.2 cc
Maximum Power 6.15 kW (8.36 Ps) @ 8000 rpm
Maximum Torque 0.82 Kg-m (8.04 N-m) @ 4500 rpm
Top speed 100 Kmph
Acceleration (0-60Kmph) 6-7s
Fuel Delivery System Side Draft, Variable Venturi Type with TCIS
Cooling Air cooling
Ignition DC - Digital CDI
Compression Ratio 9.9:1
No of Cylinder 1
Bore & Stroke 50.0 x 49.5 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 - Speed Constant Mesh
Clutch Multiplate Wet
Starting system Self Start / Kick Start

Brake

Brake
Front Brake Internal expanding shoe type (130 mm) - Non Asbestos Type
Rear Brake Internal expanding shoe type (110 mm) - Non Asbestos Type
ABS no

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing arm with 2 step adjustable hydraulic shock absorber

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 X 18 - 4 PR / 42 P
Rear Tyre 2.75 X 18 - 6 PR / 48 P
Wheel Type Cast wheel
Tubeless Tyres yes

Battery

Battery
Battery Type MF Battery
Capacity 2.5 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer -
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light 12 V - 35W / 35W - Halogen bulb, Trapezoidal MFR
Tail Light 12 V - 5 / 21 W - MFR

Dimension

Dimension
Overall Length 1965 mm
Overall Width 720 mm
Overall Height 1045 mm
Ground Clearance 165 mm
Seat Height 785 mm
Wheelbase 1235 mm
Kerb/Wet Weight 112 Kg (Self)
Fuel Tank Capacity 10.5 Liter
Reserve Fuel Capacity 1.8 Liter
