Hero HF Dawn

37,400 Onwords | Ex-Showroom Chennai


Overview


  • Milege:61 Kmpl
  • Engine displacement:97.2 cc
  • Power:6.15 KW (8.36 Ps) @ 8000 rpm
  • Torque:0.82 kg-m (8.05 N-m) @ 5000 rpm
  • Gear box:4 Speed constant mesh
  • Ground clearence:165 mm
  • Fuel Tank Capacity:9.5 Litre

Variants

Variants
 Variants  Showroom price  On road price
HF Dawn 37400 42075

Overview

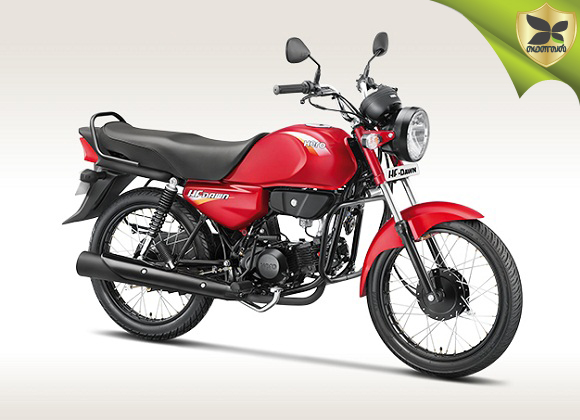

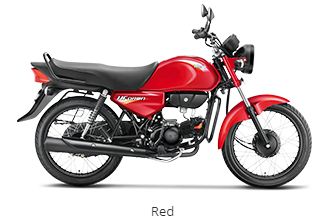

This Commuter bike is available with Black and Red color options.

In this model, the 1-cylinder and 97.2 cc capacity engine is fitted. This petrol engine delivers the power of   8.36 bhp (8000 rpm)and torque of 8.04 Nm (4500rpm). As per ARAI certification, this model gives mileage of 61 Kmpl.

This commuter bike has capable of crossing the speed of 60Kmph within 9 to 10 seconds. And this bike reaches the top speed of 85 Kmph approximately.

Performance

Performance
Engine Air cooled, 4 - stroke single cylinder OHC
Engine displacement 97.2 cc
Maximum Power 6.15 KW (8.36 Ps) @ 8000 rpm
Maximum Torque 0.82 kg-m (8.05 N-m) @ 5000 rpm
Top speed 85 Kmph
Acceleration (0-60Kmph) 7 - 9 Sec
Fuel Delivery System Carburetor
Cooling Air Cooling
Ignition DC - Digital CDI
Compression Ratio 9:1
No of Cylinder 1
Bore & Stroke 50 mm x 49.5 mm
Spark Plugs Per Cylinder 1
Valves Per Cylinder 2
Gear box 4 Speed constant mesh
Clutch Multiplate wet
Starting system Kick Start

Brake

Brake
Front Brake Internal expanding shoe type ( 130 mm ) Non -asbestos type
Rear Brake Internal expanding shoe type ( 110 mm ) Non -asbestos type
ABS No

Suspension

Suspension
Front Suspension Telescopic Hydraulic Shock Absorbers
Rear Suspension Swing Arm with 2 step adjustable hydraulic shock absorbers

Wheels & Tyres

Wheels & Tyres
Front Tyre 2.75 x 18 - 4 PR / 42 P
Rear Tyre 2.75 x 18 - 6 PR / 48 P
Wheel Type Spoke
Tubeless Tyres No

Battery

Battery
Battery Type MF
Capacity 2.5 Ah
Voltage 12 V

Instrument Console

Instrument Console
Speedometer Analogue
Odometer Analogue
Engine RPM meter -
Fuel Gauge Analogue

Lighting

Lighting
Head Light 12 V - 35 / 35 W (Halogen Bulb), Round MFR
Tail Light 12 V - 5 / 21 W - MFR

Dimension

Dimension
Overall Length 1965 mm
Overall Width 720 mm
Overall Height 1045 mm
Ground Clearance 165 mm
Seat Height -
Wheelbase 1235 mm
Kerb/Wet Weight 105 kg
Fuel Tank Capacity 9.5 Litre
Reserve Fuel Capacity 1.4 Litre
